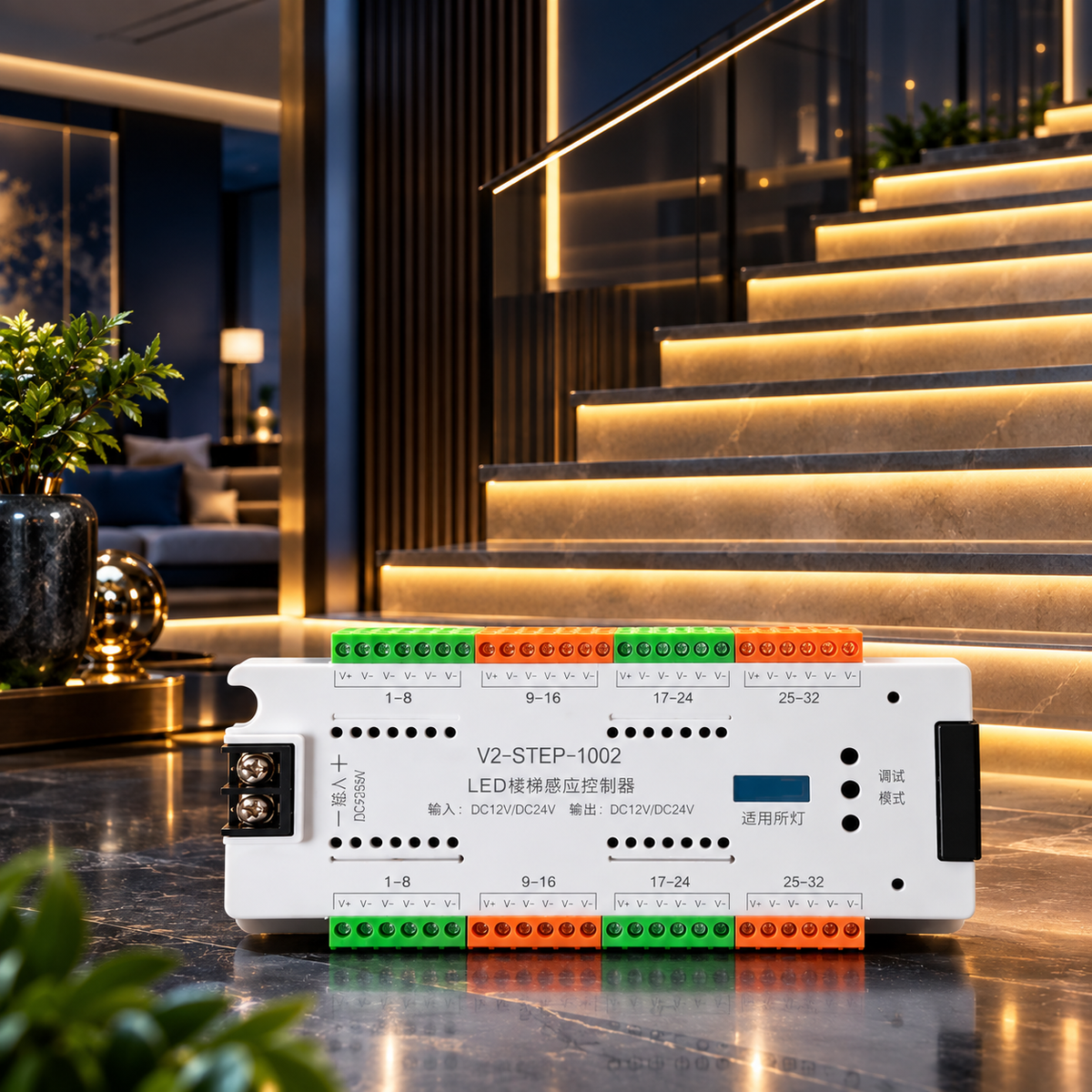

32-Channel Stair Light Sensor Controller

The 32-Channel Stair Light Sensor Controller is designed for automatic staircase lighting, providing convenient and efficient control for up to 32 stair lights. Made from high-quality plastic and aluminum, it offers stable operation and responsive sensing for residential and commercial applications.

The system automatically activates the staircase lights when movement is detected and turns them off after the person leaves. The controller also allows you to adjust the light-off timing through the setup button.

Key Features

• Product Type: 32-Channel Stair Light Sensor Controller
• Channels: 32, configurable from 1–32 steps
• Voltage: DC 12V / DC 24V
• Maximum Power: 350W
• Sensors: 2 Sensors (A & B)
• Operating Mode: Photoelectric
• Induction Distance: Up to 3 Meters
• Static Power Consumption: 5W
• Output Line Length: 5m + 5m
• Material: Plastic & Aluminum
• Automatic Operation: Turns lights on when movement is detected and off after the person leaves
• Timing Adjustment: Light-off timing can be adjusted using the setup button
• Stair Capacity: Supports up to 32 stair lights

How It Works

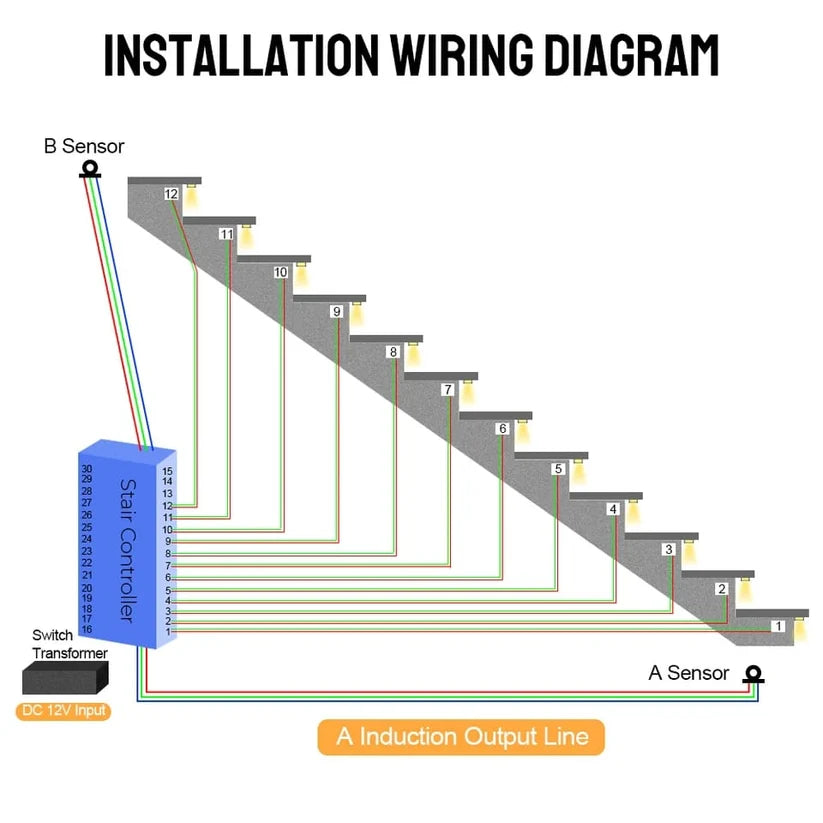

The controller uses two sensors, A and B, to detect movement on the staircase. When a person enters the detection area, the stair lights can activate automatically in sequence. After the person leaves the detection area, the lighting system turns off according to the configured timing.

Applications

Ideal for:

• Residential Staircases
• Homes
• Offices
• Shopping Malls
• Shops
• Hotels
• Commercial Buildings
• Indoor Stair Lighting
• Automatic Staircase Lighting Projects
